Skoda Favorit Forman Pickup (Typ 785) Parts catalog
/
Crankshaft camshaft piston
/
7zap
/
Skoda
/
...
/
Crankshaft camshaft piston
/

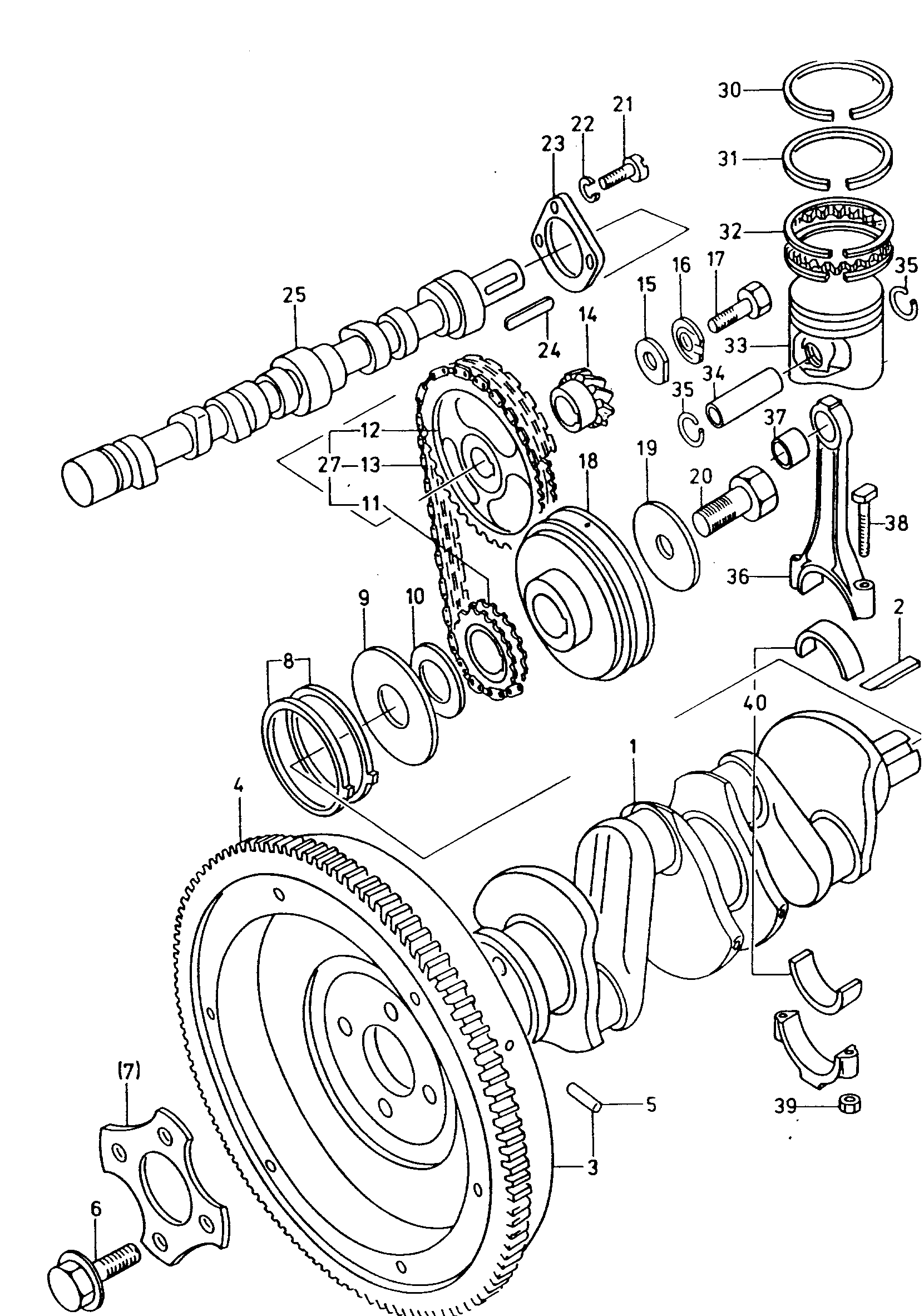

Crankshaft camshaft piston - Skoda Favorit Forman Pickup (Typ 785) (Europe)
Brand:
Skoda
Model:
Favorit Forman Pickup (Typ 785)
Years:
1988 - 1995
Region:
Europe
Skoda
Favorit Forman Pickup (Typ 785)
1988 - 1995
Europe
Crankshaft Camshaft piston
1
04 71 98317
Crankshaft
x1
04 71 98317
1
04 71 98317B
Crankshaft
x1
04 71 98317B
2
04 71 05445
Feather key
x1
04 71 05445
3
04 71 05271A
Flywheel
(135,ecot.)
x1
04 71 05271A
3
04 71 05269B
Flywheel
x1
04 71 05269B
4
03 21 05275
Crown gear
x1
03 21 05275
5
N9 07 44301
Cylinder pin
x2
N9 07 44301
6
N9 02 06104
Hexagon bolt 08.87
x4
N9 02 06104
6
N9 02 06103
Hexagon bolt 08.87
x4
N9 02 06103
8
04 71 05635A
Guide ring
x2
04 71 05635A
8
04 71 05635C
Guide ring oversize
x2
04 71 05635C
8
04 71 05635D
Guide ring oversize
x2
04 71 05635D
8
11 40 18493
Guide ring oversize
x2
11 40 18493
9
04 71 05219A
Thrust ring
x1
04 71 05219A
No longer available Discont. / replace:
13
6U 01 98026
1 set of sprockets with chain
x1
6U 01 98026
14
04 71 15021A
Drive wheel
x1
04 71 15021A
15
04 71 09149
Compensation washer
x1
04 71 09149
16
04 71 09250
Retaining washer
x1
04 71 09250
17
97 12 10020
Hexagon bolt
x1
97 12 10020
18
11 50 10221
Pulley
x1
11 50 10221
18
04 71 05253F
Pulley 01.93
(monomotronic)
x1
04 71 05253F
19
11 00 19510
Thrust ring
x1
11 00 19510
20
04 71 05229B
Hexagon bolt
x1
04 71 05229B
21
00 52 38540
Cylinder screw with washer 06.94
x2
00 52 38540
22
N0 12 0064
Spring ring 08.87 - 05.94
x3
N0 12 0064
23
04 71 09493A
Flange
x1
04 71 09493A
24
98 58 06024
Feather key
x1
98 58 06024
25
04 71 09101R
Camshaft
(135,136)
x1
04 71 09101R
25
04 71 09101S
Camshaft 03.93
(136x)
x1
04 71 09101S
25
04 71 09101AE
Camshaft 08.96 - 07.97 camshaft 10.95 - 07.96
(136: monomotronic)
x1
04 71 09101AE
30
04 71 07301B
Piston ring, upper
x4
04 71 07301B
31
04 71 07311B
Piston ring, lower
x4
04 71 07311B
32
04 71 07319
Oil scraper ring
x4
04 71 07319
33
04 71 07101H
Piston
(136)
x4
04 71 07101H
33
04 71 07101F
Piston
(135)
x4
04 71 07101F
33
04 71 07101G
Piston 01.93
(135: monomotronic)
x4
04 71 07101G
34
90 82 00054
Piston pin
x4
90 82 00054
35
11 40 08510
Securing ring
x8
11 40 08510
36
04 71 05401A
Conrod
x4
04 71 05401A
37
11 10 18010
Bush - connecting rod
x4
11 10 18010
38
04 71 05425
Bolt - connecting rod
pleuelschraube 04.92
x8
04 71 05425
39
N9 08 56901
Hexagon nut
x1
N9 08 56901
40
04 71 05701
Connecting rod bearing shell
x8
04 71 05701
40
11 30 10483
Connecting rod bearing shell oversize
x8
11 30 10483
