Skoda Favorit Forman Pickup (Typ 785) Parts catalog
/
Cylinder block
/
7zap
/
Skoda
/
...
/
Cylinder block
/

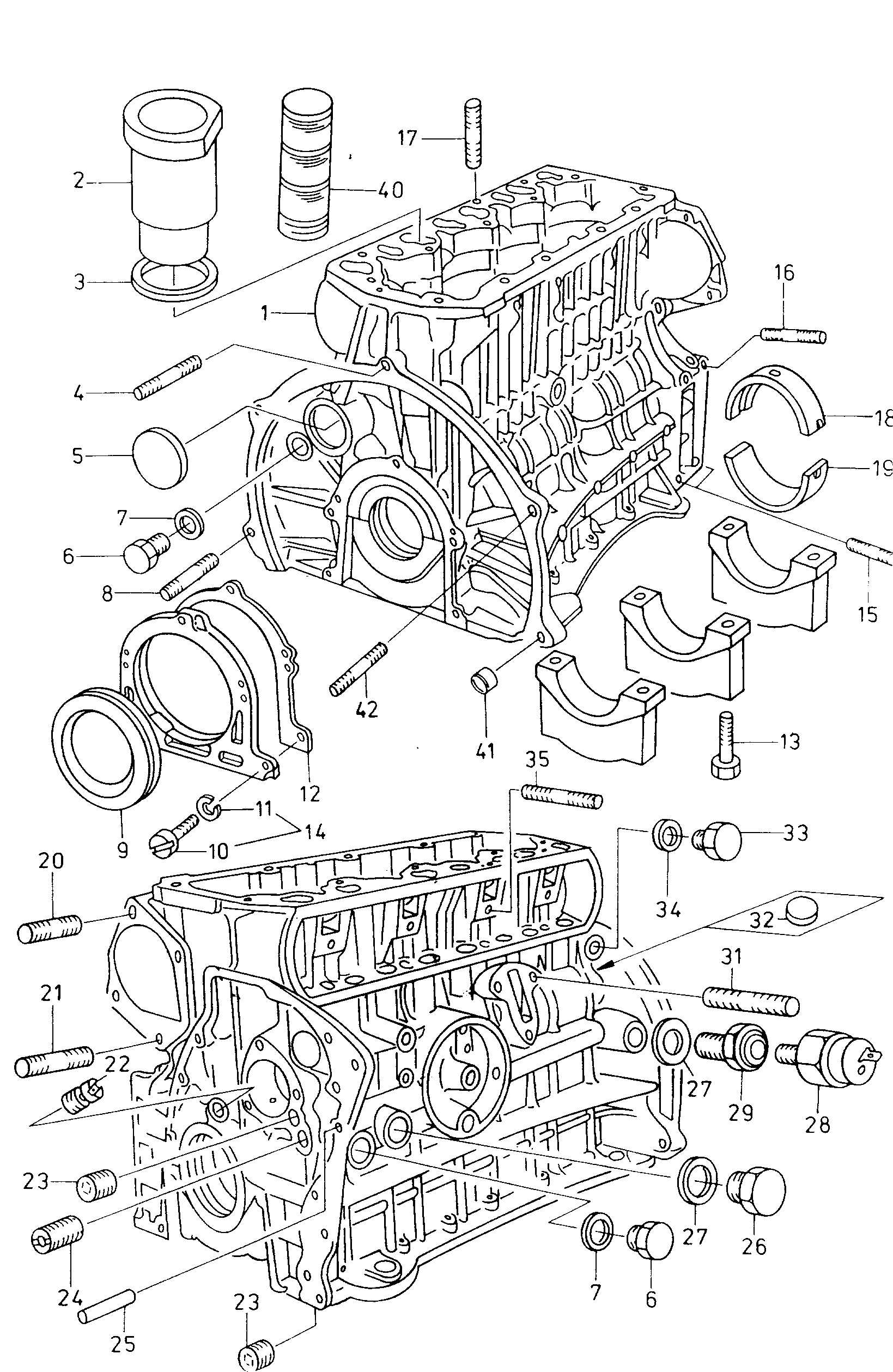

Cylinder block - Skoda Favorit Forman Pickup (Typ 785) (Europe)
Brand:
Skoda
Model:
Favorit Forman Pickup (Typ 785)
Years:
1988 - 1995
Region:
Europe
Skoda
Favorit Forman Pickup (Typ 785)
1988 - 1995
Europe
cylinder block
1
04 71 03019F
Cylinder block
( 1.3ltr.)
x1
04 71 03019F
2
04 71 03321D
Cylinder liner
x4
04 71 03321D
3
04 71 03147B
Seal
xX
04 71 03147B
3
04 71 03147A
Seal
xX
04 71 03147A
3
04 71 03147
Seal
xX
04 71 03147
4
N9 08 29601
Threaded pin
x1
N9 08 29601
5
99 13 99035
Bungs
x1
99 13 99035
6
N9 08 21601
Sealing plug
x2
N9 08 21601
7
N9 08 01901
Seal ring
x1
N9 08 01901
8
N9 07 93101
Threaded pin
x1
N9 07 93101
9
04 71 03085A
Seal ring
x1
04 71 03085A
10
97 41 86020
Socket head bolt 08.87 - 05.91
x5
97 41 86020
11
N0 12 0064
Spring ring 08.87 - 05.91
x5
N0 12 0064
12
00 54 01661
Seal
xW
00 54 01661
13
N9 08 00801
Hexagon bolt
x6
N9 08 00801
14
N9 08 22901
Hex collared bolt
x5
N9 08 22901
15
97 87 88645
Threaded pin
x2
97 87 88645
16
97 87 88632
Threaded pin
x2
97 87 88632
17
97 87 88635
Threaded pin
x3
97 87 88635
18
04 71 05561
Crankshaft bearing shell
x3
04 71 05561
18
04 71 05561D
Crankshaft bearing shell oversize
x3
04 71 05561D
18
04 71 05561E
Crankshaft bearing shell oversize
x3
04 71 05561E
18
11 40 10196
Crankshaft bearing shell oversize
x3
11 40 10196
19
04 71 05591
Crankshaft bearing shell
x3
04 71 05591
19
04 71 05591D
Crankshaft bearing shell oversize
x3
04 71 05591D
19
04 71 05591E
Crankshaft bearing shell oversize
x3
04 71 05591E
19
11 40 10197
Crankshaft bearing shell oversize
x3
11 40 10197
20
N9 08 03701
Threaded pin
x1
N9 08 03701
21
97 87 08652
Threaded pin
x3
97 87 08652
22
04 71 03643
Oil spray jet
x1
04 71 03643
23
04 71 03545
Bungs
x1
04 71 03545
24
04 71 03033
Bungs
x1
04 71 03033
25
N9 07 44301
Cylinder pin
x2
N9 07 44301
26
N9 08 20901
Sealing plug
x1
N9 08 20901
27
93 38 31622
Seal ring
x2
93 38 31622
28
04 79 19081
Oil pressure switch 08.87
x1
04 79 19081
31
97 82 08030
Threaded pin
x2
97 82 08030
32
N9 07 96301
Bungs
x2
N9 07 96301
33
N9 08 29401
Sealing plug
x1
N9 08 29401
34
04 71 03677
Seal ring
x1
04 71 03677
35
97 86 06032
Threaded pin
x4
97 86 06032
40
11 50 00310
1 set: cylinder liners with pistons and piston rings comprising:
(136)
x1, , 4, 4, 4, 4, 4
11 50 00310
40A
11 50 00311
1 set: cylinder liners with pistons and piston rings comprising:
(135)
x1, , 4, 4, 4, 4, 4
11 50 00311
41
04 71 03347
Dowel sleeve
x2
04 71 03347
42
97 87 90640
Threaded pin 05.91
x1
97 87 90640
