Skoda Favorit Forman Pickup (Typ 785) Parts catalog
/
Cylinder head
/
7zap
/
Skoda
/
...
/
Cylinder head
/

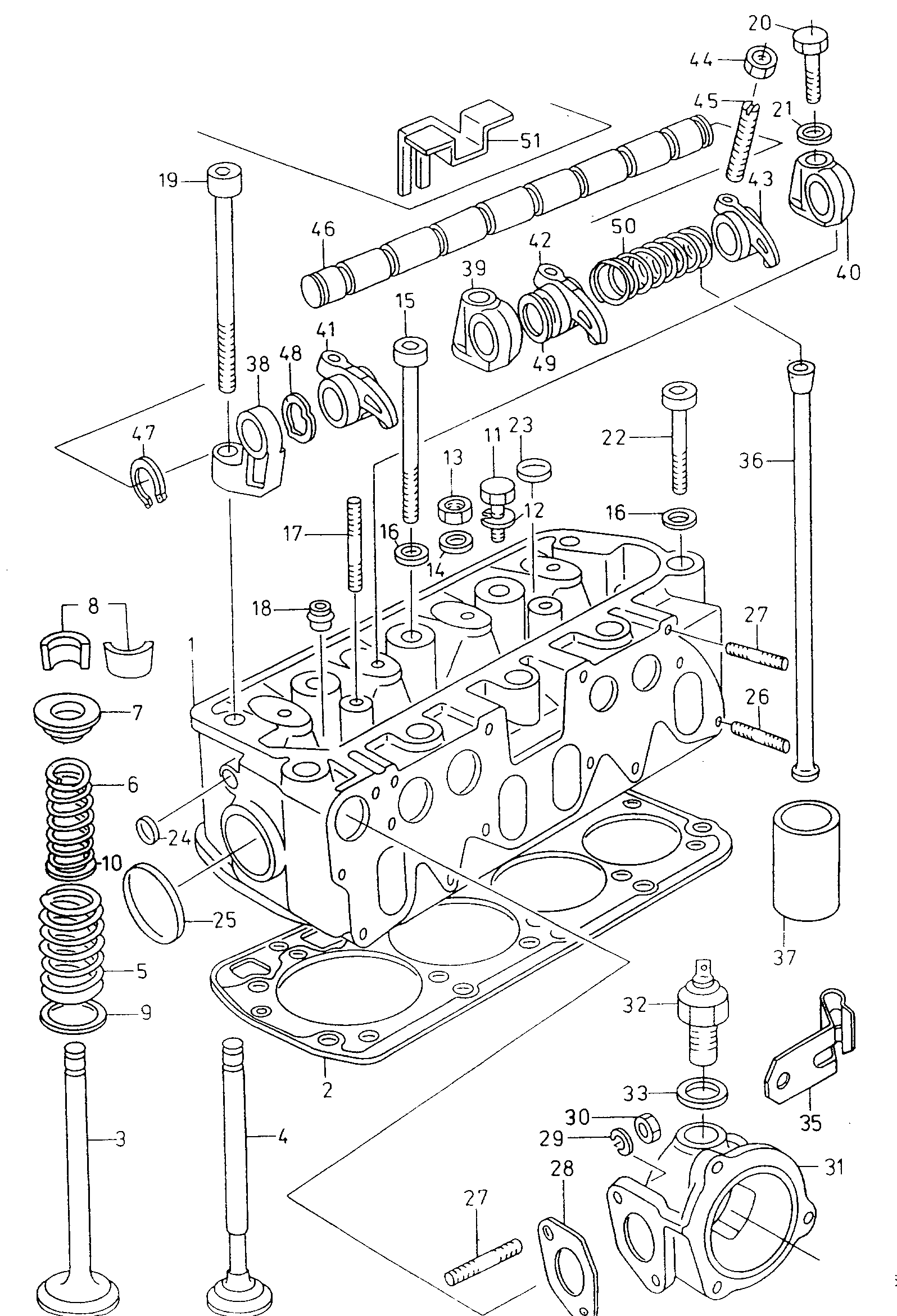

Cylinder head - Skoda Favorit Forman Pickup (Typ 785) (Europe)
Brand:
Skoda
Model:
Favorit Forman Pickup (Typ 785)
Years:
1988 - 1995
Region:
Europe
Skoda
Favorit Forman Pickup (Typ 785)
1988 - 1995
Europe
Cylinder head
-
04 71 03063H
Cylinder head with valves
(135)
x1
04 71 03063H
1
04 71 03353L
Cylinder head
(135,136,135i)
x1
04 71 03353L
04****63H
1
04 71 03063K
Cylinder head with valves
(136i)
x1
04 71 03063K
2
04 71 03383D
Cylinder head gasket
x1
04 71 03383D
3
04 71 09601
Inlet valve
x4
04 71 09601
3
11 40 20254
Inlet valve oversize contents of package:
x1
11 40 20254
4
04 71 09611
Exhaust valve
x4
04 71 09611
4
11 40 20269
Exhaust valve oversize contents of package:
x1
11 40 20269
5
04 71 09623B
Valve spring
x8
04 71 09623B
5
04 71 09623A
Valve spring 12.93
(136: monomotronic)
x8
04 71 09623A
6
04 71 09633
Valve spring
x8
04 71 09633
7
04 71 09641
Spring disc
x8
04 71 09641
8
04 71 09651C
Cotter, split
x8
04 71 09651C
9
N9 08 22701
Support washer
x8
N9 08 22701
9
04 71 09627B
Support washer 12.93
(136: monomotronic)
x8
04 71 09627B
04****27C
10
N9 08 22801
Underlay
(135)
x8
N9 08 22801
11
N0 10 24123
Hexagon bolt
x3
N0 10 24123
12
N0 12 0387
Spring ring
x1
N0 12 0387
13
99 24 00888
Hexagon nut 08.87 - 01.94
x4
99 24 00888
13
N0 11 1849
Hexagon nut, self-locking 02.94
x1
N0 11 1849
14
N0 11 52520
Washer
x3
N0 11 52520
15
N9 07 95701
Socket head bolt with hexagon socket head
x7
N9 07 95701
16
N9 07 95901
Washer
x8
N9 07 95901
17A
N9 08 00401
Threaded pin
x1
N9 08 00401
17B
04 71 03399A
Threaded pin 06.94
x1
04 71 03399A
18
04 71 09675A
Seal ring
x8
04 71 09675A
19
N9 07 95801
Socket head bolt with hexagon socket head
x2
N9 07 95801
20
N0 10 34516
Hexagon bolt
x4
N0 10 34516
22
N9 07 95601
Socket head bolt with hexagon socket head
x1
N9 07 95601
23
N9 08 02601
Cap closure
x3
N9 08 02601
25
N9 08 02701
Bungs
x2
N9 08 02701
26
N9 08 00301
Threaded pin
x6
N9 08 00301
27
N9 08 00201
Threaded pin
x8
N9 08 00201
28
11 50 95852
Seal
x1
11 50 95852
30
N0 11 00840
Hexagon nut
x2
N0 11 00840
31
11 50 52010
Thermostat housing
x1
11 50 52010
32
11 39 82410
Temperature sensor
x1
11 39 82410
33
93 38 81420
Seal ring
x1
93 38 81420
36
04 71 09317D
Pushrod
x8
04 71 09317D
36
04 71 09301A
Pushrod 08.89 - 09.92
(ecotronic)
x4
04 71 09301A
37
04 71 09311
Tappets
x8
04 71 09311
37
11 40 20481
Tappets oversize
x8
11 40 20481
38
04 71 09523A
Bearing piece
x2
04 71 09523A
40
04 71 09525A
Bearing piece
x4
04 71 09525A
41
04 71 09443
Rocker arm
x3
04 71 09443
42
04 71 09443B
Rocker arm
x3
04 71 09443B
43
04 71 09443A
Rocker arm
x2
04 71 09443A
44
N9 07 95301
Hexagon nut
x8
N9 07 95301
45
N9 08 11801
Adjusting screw
x8
N9 08 11801
46
04 71 09402
Valve lever shaft
x1
04 71 09402
47
N0 12 4144
Securing ring
x2
N0 12 4144
47
N0 12 4141
Securing ring
x2
N0 12 4141
48
04 71 09497
Spring ring
x2
04 71 09497
49
N9 08 01601
Fitted washer
x2
N9 08 01601
50
04 71 09434
Spring for valve lever
x3
04 71 09434
51
04 71 09271
Retaining plate
x1
04 71 09271
