Engine complete, short engine 08.84 - 12.89 - Skoda Sk.105/20/30/35/36/garde (Europe)

Brand:

Skoda

Model:

Sk.105/20/30/35/36/garde

Years:

1976 - 1989

Region:

Europe

Skoda

Sk.105/20/30/35/36/garde

1976 - 1989

Europe

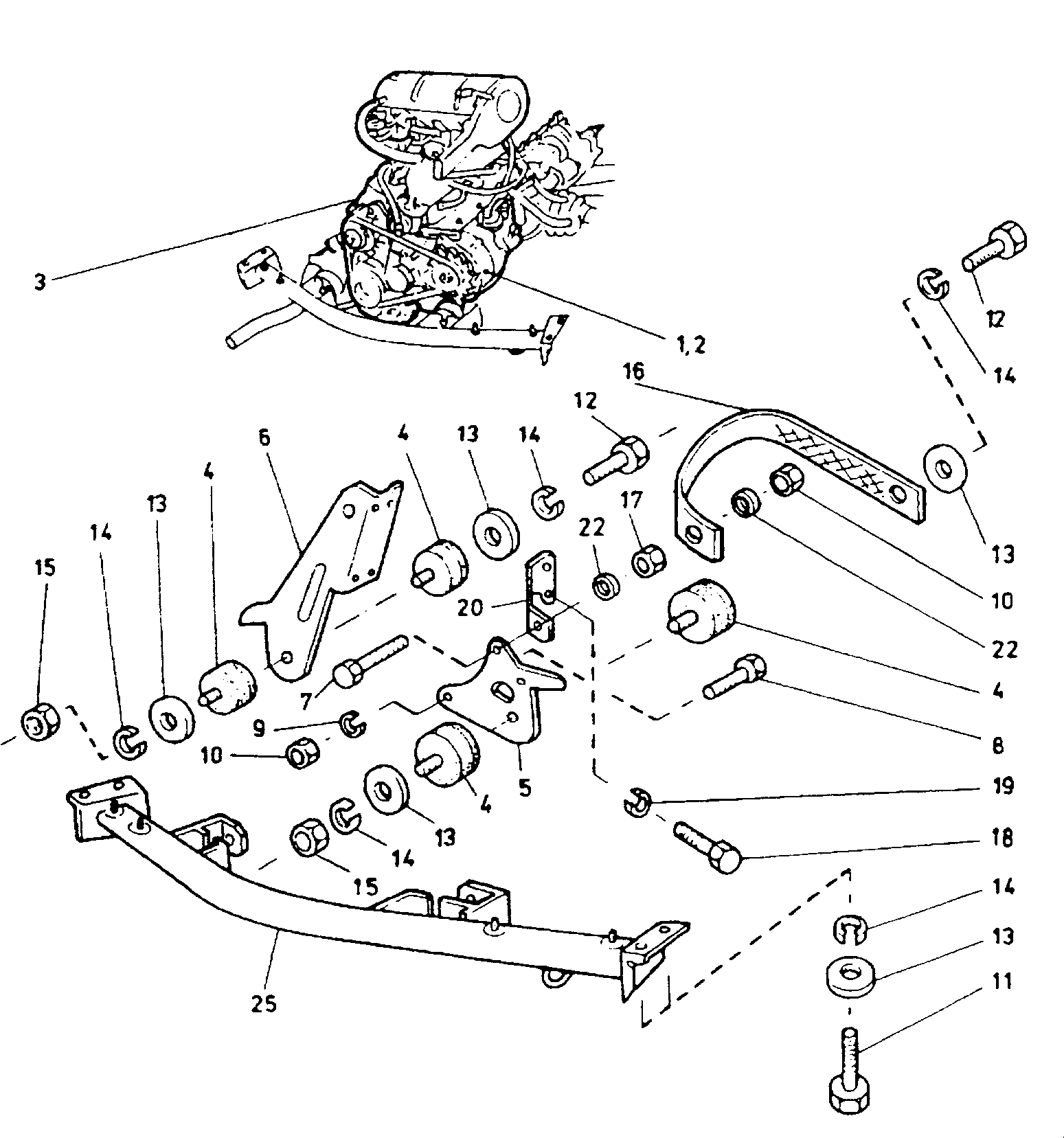

engine complete, short engine 08.84 - 12.89

engine, complete No longer available possible replacement

3

11 40 00028 Short block

(13,r)

x1

11 40 00028

3

11 40 00025 Short block

(17,r)

x1

11 40 00025

3

11 40 00026 Short block

(18,r)

x1

11 40 00026

4

11 00 12280 Bonded rubber bush

(a)

x4

11 00 12280

5

11 00 02472 Engine brackets

(a)

x1

11 00 02472

6

11 40 02471 Engine brackets

(a)

x1

11 40 02471

7

97 12 88030 Fitted bolt, hexagon head

(a)

x2

97 12 88030

8

97 12 88022 Hexagon bolt

(a)

x1

97 12 88022

9

N0 12 0387 Spring ring

(a)

x5

N0 12 0387

10

N0 11 00840 Hexagon nut

x2

N0 11 00840

11

N1 01 70511 Hexagon bolt

(a)

x4

N1 01 70511

12

97 12 90018 Hexagon bolt

(a)

x2

97 12 90018

13

N0 11 52711 Washer

(a)

x8

N0 11 52711

14

99 27 40490 Spring ring

(a)

x8

99 27 40490

N ****113

15

99 24 01490 Hexagon nut

(a)

x2

99 24 01490

16

10 39 19111 Earth line

(a)

x1

10 39 19111

17

N0 11 1849 Hexagon nut, self-locking

x1

N0 11 1849

18

97 12 86018 Fitted bolt, hexagon head

(a)

x2

97 12 86018

19

N0 12 0064 Spring ring

(a)

x2

N0 12 0064

20

11 10 02490 Brace

(a)

x1

11 10 02490

22

N0 11 52520 Washer

(a)

x2

N0 11 52520

25

11 40 00270 Cross member

(a)

x1

11 40 00270
